Pair-A-Dice Trikes Trailers
Escapade Elite
Escapade Elite
Escapade Elite

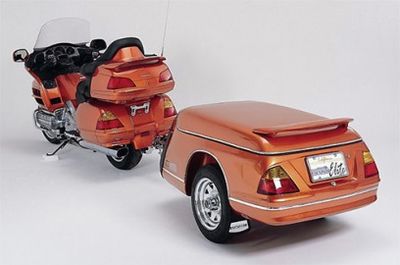

Never before has a trailer been so deserving of its name than Escapade's ELITE trailer. Nor has a trailer ever been so well matched to its host motorcycle in both looks and performance. Designed specifically with the GL1800 Goldwing in mind, the result is a trailer that beautifully incorporates the sleek lines and style characteristics of the new Goldwing, while maintaining the unsurpassed quality and engineering for which Escapade is renowned. You'll be amazed at the value you'll receive with this trailer. A host of standard features and optional accessories, such as custom spoiler with brake light and lid-activated interior dome light, serve to make the Elite the finest example of craftsmanship and style on the road.
Escapade LE
Escapade Elite
Escapade Elite
The LE has that timeless aura of style, but with all the benefits of Escapade Trailer's modern suspension and engineering designs. The simple, elegant body and classic lighting style make for the ideal complement to any rig. With over 25 cu. Ft. of storage capacity and spare tire compartment, you'll never run out of space, even on your longest adventures.
Escapade Excel
Escapade Elite
Escapade Excel
The Ultimate in Performance Touring
In designing this new Excel model, Escapade has kept the best features of the previous generations that made Escapade America's #1 motorcycle cargo trailer.
In addition we improved the Independent Suspension by elongating the swing arm, changing the shock angle and adding a new Anti-Roll Suspension System. This ARS allows full independent suspension movement while keeping the trailer flat and stable for better handling and less lean in tight corners along with better tracking behind the motorcycle.
Escapade Elite, LE and Excel Features
Chassis
Escapade Trailer is the only manufacturer that combines the body and frame of the trailer to make a single unit. Our steel T-Chassis is integrated into the trailer body which lowers the trailer's center of gravity and ensures stable performance in all riding situations. This gives the trailer a smooth, flat surface over which air can travel unobstructed and also creates longitudinal and latitudinal, greatly enhancing the cargo deck's strength.
Suspension and Tracking
SUSPENSION
The Escapade Trailer's legendary handling is the product of a brilliantly engineered suspension system. Our trailers incorporate an air shock system with an independent trailing swing arm design. The shocks have been designed for us by the industry leader - Progressive Suspension, Inc. The special damping cartridge gives superior damping even when the trailer is towed empty, meaning no bounce under every condition. These Progressive air shocks are used in all models except the Eclipse which uses a Progressive coil over spring shock.
TRACKING
Escapade Trailer's superb tracking is due in part to its United States Department of Transportation approved 12-inch wheel and 4.80 x 12" tubeless tire. The larger than average wheels and tires have a more positive gyroscopic effect when turning at highway speeds. The increased width has more tread to road surface contact and grips the road to eliminate the swaying tendencies of thinner tires. And because it is a standard automotive size, it is easily replaced even in those out-of-way rural areas. (Standard equipment is painted white wheel. Chrome wheels are available as an option).
Body and Finish
Our bodies are hand made and custom finished at our factory. Our in-house fiberglass and paint departments insure the highest degree of quality control and the color match capability is unsurpassed. Bodies are painted using top of the line urethane paints and clears, with a 2-3 part paint process and 3 clear coats. For GL1800 colors, we use the same paints and clears supplied to Honda. Bodies are wet sanded and then polished in a two-step process to achieve an amazing paint finish.
Lighting
Greater visibility means greater safety. Escapade Trailer exceeds the trailer light standards set by the United States Department of Transportation. All lighting is connected to the bike's power supply with a substantial wiring harness that is firmly secured inside the trailer. There is no external wiring except at the tongue connection. For even more visibility, request the spoiler with L.E.D. brake light.
Storage Capacity
Spaciousness that can't be beat. With an Escapade you will get over 25 cu. Ft of storage space, including an integrated spare tire compartment and utility storage areas that are designed to maintain a flat surface on the trailer deck (LE, SE and Elite models).
Specifications
MODELS Elite, SE and LE Eclipse and Classic Excel
Wheel Base Track 33 in. 30 in. 6.83 in.
Body Length 67 in. 58 in 70.45 in.
Body Width 40 in. 37 in. 43.25 in.
Overall Length 97 in. 85 in. 96.25 in.
Trailer Volume 25 cu.ft. 17 cu.ft. 28 cu.ft.
Empty Weight 237 lbs. 197 lbs. 253 lbs.
Load Capacity 350 lbs. 350 lbs. 28 cu.ft.
Ground Clearance 7 in. 10 in. 7 in.
Coupler 1-7/8 ball 1-7/8 ball 1-7/8 ball
Tongue Weight 14 lbs. 17 lbs. 14 lbs.
Wheels / Tires all models 12 x 4 on 4 wheel / 4.80 x 12B tire
