Honda Trike Kits 780-789-1933

---

For models 2012 and up

  For models 2012 and up

For models 2012 and up

For Valkyrie Models– 1997 to 2002

 For VTX1300 Models – 2005 and up

For VTX1800 Models – 2005 and up

 All New Design - Same Great Performance

For model years 2012 and up.

 Let  Pair-a-Dice Trikes take care of pick up and delivery of your motorsport  machine and save time, trouble and headaches. Click the pic to start the fun.  rolling.

A uniquely-designed trike kit on an iconic frame. For model years 2012 and up.

 Every HT1800 Roadsmith Trike is built with the attention and  craftsmanship needed to be a true extension of the Honda™ motorcycle  itself. Take a closer look and you will see what we mean.

Have Fun, Worry-Free

Need help starting your incredible journey? Get up to $25,000 in select products and services.

Click the pic to take the first step.

A terrific trike with a Champion design.

For model years 2012 and up

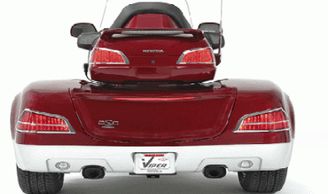

 The VIPER was designed from the ground up exclusively for the 2012 & newer Honda Goldwing 1800. It captures Honda’s new styling changes and  incorporates a perfect match of the LED trike tail lights to the Gold Wing tour box lights accented with a trunk door spoiler light as a  standard feature. The trunk door has been made wider for easier access  and opens to the one of the largest trunk storage areas in the industry: 8 cubic feet.

 All California Sidecar trike conversions are completely bolt-on kits. No welding is required.

Every kit we sell comes with mounting hardware, detailed photo instructions, wiring harnesses, and technical support.

 At its core, a fully independent suspension system based on light weight  cast aluminum smoothes the roughest road, while providing responsive  handling to the driver. A gas charged coil-over shock and chromoly  anti-roll bar work together to control body lean and keep the trike flat  through the most demanding curves. Our proprietary brake calipers and  fully integrated linked braking system delivers unmatched braking power  and control. Add the 6 degree Power Trak to create supreme steering feel  and control.

 Curb Weight - 1251 lbs

Rated Load Capacity - 650 lbs* (higher & lower spring rates available)

Wheel - 16 X 7 in, 5 on 100 mm bolt pattern, 35mm offset

Wheel Base with Power Trak - 77.6 in

Overall Length with Power Trak - 114.7 in

Width with chrome wheel well trim - 61 in

Ground Clearance - 4.2 in

Trunk Storage Capacity - 8 cu. Ft.

Trailer Hitch Ball Height (1-7/8” ball) - 13 in

Disc Brake System

Viper brakes are completely integrated with O.E.M Linked Braking and  fully ABS Integrated. Application specific, proprietary, patented, CNC  machined, four-piston, aluminum alloy brake calipers. Our performance  upgrade offers drilled & nickel plated rotors with vented and red  anodized calipers for improved heat dissipation. Our braking systems  surpass all others in efficiency and safety with truly  confidence-inspiring braking performance.

Wheels and Tires

 The Viper comes standard with 5-spoke American Racing wheels with a  sharp silver powder coat finish. The 205/55R16 All Season radial tires  provide the highest level of performance and control in all riding  conditions. Optional OEM matching 17” chrome directional wheels are  available. Wheels are 16 x 7in, ET35, 5 on 100mm bolt pattern.

 In typical California Sidecar Trike fashion, we’ve crafted a body with  an aggressive, sleek style that perfectly complements the GL1800  Goldwing. The body is equipped with Honda taillights, halogen reverse  lights, and rear chrome trim accent strip. Each painted body comes with  the finest finish in the business. Our in-house fiberglass and paint  departments insure the highest degree of quality control and the color  match capability is unsurpassed. At California Sidecar we use the same  paints and clears supplied to Honda. Bodies are wet sanded and then  polished in a two-step process to achieve an amazing paint finish.

Optional Accessories

• Choice of multiple wheel designs
• Chrome wheel well trim kit
• Performance brake upgrade calipers and rotors
• 3.6 gallon auxiliary fuel tank
• Ground Effects tested to hold over 700 lbs.
• 6°Power Trak for easier steering
• LED Light Bar
• Fender Bra Kit
• Marine Grade black vinyl with CSC embroidered logo
• Chrome side cover panels
• Chrome tail light trim
• Parking brake
• Trailer hitch

 Suspension

• Light weight & strong cast and forged aluminum structural components
• Purpose designed JRI nitrogen-charged shock
• Eibach 300Lb spring designed to accommodate a loaded weight of up to 650lbs.
• O.E.M. hydraulic spring preload adjuster is  retained forHonda GL1800 kits. Other models feature a CSC hydraulic  preloader option.
• Maintenance and adjustment free components

Drivetrain

• Final Drive Gear - CSC specific aluminum differential housing and gearing
• Driveshaft - One piece vibration free automotive style shaft with automotive u-joints

 Wheelbase - 78"

Overall length - 116"

Overall width - 56" at the body 58" wide with Wing Guards

Weight - 1150 lbs wet

Storage - 27" wide x 14" high opening x 15" deep- 6 cu ft.

Suspension - Lateral trailing arm Independent

Rear Suspension

Suspension adjustment - Manually adjustable Progressive coil-over shocks

Stabilizer bar - 5/8" bar to control body roll

Tires, rear - 205/65-16 radial

Rims, rear - 16x7 alloy 5x4 1/2 35mm offset   Final drive ratio - 2.93:1

Brakes, rear - Dual 35mm piston calipers

Shocks - Adjustable coil over

Body material - Polyester resin fiberglass   Drive system - 2" diameter shaft w/ sealed u-joints

•  Independent rear suspension
• True track stabilizer bar
• Longer wheelbase
• Shaft driven differential
• Disc brakes
• Heavy Duty driveshaft
• Alloy wheels
• Storage Compartment
• Factory styled body
• Trailer hitch
• 5-gallon auxillary fuel tank
• Steering kit
• 3 year or 1,000,000 mile warranty

Need help starting your incredible journey? Get up to $25,000 in select products and services.
Click the pic to take the first step.

•  Overall Width - 57.75"
• Overall Length - 108"
• Overall Length (w/ EZ-Steer) - 109.5"
• Wheelbase - 71"
• Wheelbase (w/ EZ-Steer) - 72.5"
• Load Capacity - 640 pounds
• Tire Size - 205/70/R15
• Brakes - High performance disc
• Trunk capacity - 6.75 cubic feet (5 full-face helmets + more)
• Suspension - "Zero-Flex" swing arm using the OEM adjustable shocks and 2 coil-over shocks.

•  Gel-Coat (in Base Price)
• Custom-engineered “Zero-Flex” swing arm retaining OEM single shock  (with lifting capabilities) and two new Progressive coil-over helper  shocks - Improved handling, more confident ride, preserving OEM’s ride-height control
• High-performance, independent front and rear disc brake systems - Increased safety when braking in turns
• Custom-built lightweight rear-end - Reduced un-sprung weight, a softer ride
• Powder-coated structural components - More durable, longer-lasting coating system
• Reinforced fiberglass body construction - Rugged, durable product that will last longer
• Extra large trunk + over-wheel storage - Increased capacity: three full-face helmets and more
• OEM tail and signal lights - Preserves classic 1800 styling

Click the pick to learn more about this great coverage package included with the kit.

•  All electrical components factory installed
• All mounting hardware
• Complete detailed instructions
• Extra large trunk (holds three full face helmets - additional storage above wheel wells)
• Fully integrated swing arm using OEM adjustable shocks + new coil-over Progressive shocks
• High performance disc brakes
• Matching GL 1800 lighting
• New drive shaft.
• Wheels (aluminum alloy) and mounted, balanced tires (205/70/R15)

 Vehicles are no longer being painted by the manufacture with a fixed  color. Current paints contain variants that can occur in the mixing,  application, and human process, that contribute to the difficulty of  matching colors. Due to the complexity of the colors being used by the  manufacturers, color matching paint of an existing product in some cases  can be extremely difficult. In addition, Age of vehicle, and fading  throughout the years, add to the difficulty of matching paint.

Champion Motorcycle Accessories International, Inc. takes extra steps  to deliver a professional paint job that will match the existing paint  however, in all of our diligence; we cannot and will not guarantee an  exact color match.

 Let  Pair-a-Dice Trikes take care of pick up and delivery of your motorsport  machine and save time, trouble and headaches. Click the pic to start the fun.

 For GL1800 – 2001 to 2010

Same Cobra style but double the trunk space.

 GL1800 – 2001 to 2010

Hannigan engineering on a Honda GL1800

 For GL1800 – 2001 to 2010

Classic trike design for an iconic bike.

For GL1800 2001 to 2010

Champion design for an old school bike

 For GL1800 2001 to 2010
Champion design for an old school bike

Don't let a few dollars stand in the way of your dreams. Click the pic to get your ride rolling.

 Curb Weight - 1251 lbs

Rated Load Capacity - 650 lbs* (higher & lower spring rates available)

Wheel - 16 X 7 in, 5 on 100 mm bolt pattern, 35mm offset

Wheel Base with Power Trak - 77.6 in

Overall Length with Power Trak - 113.3 in

Trike Width with chrome wheel well trim - 61 in

Ground Clearance - 4.2 in

Trunk Storage Capacity - 8 cu. Ft.

 The Cobra XL comes standard with 5-spoke American Racing wheels with a sharp silver powder coat finish. The 205/55R16 All Season radial tires  provide the highest level of performance and control in all riding  conditions. Optional OEM matching 17” chrome directional wheels are  available. Wheels are 16 x 7in, ET35, 5 on 100mm bolt pattern.

Hands down, the most innovative suspension engineering design on the market! The Viper features:

• Light weight & strong cast and forged aluminum structural components
• Purpose designed JRI nitrogen-charged shock
• Eibach 300Lb spring designed to accommodate a loaded weight of up to 650lbs.
• O.E.M. hydraulic spring preload adjuster is  retained forHonda GL1800 kits. Other models feature a CSC hydraulic  preloader option.
• Maintenance and adjustment free components

•  Choice of multiple wheel designs
• Chrome wheel well trim kit
• Performance brake upgrade calipers and rotors
• 3.6 gallon auxiliary fuel tank
• Ground Effects tested to hold over 700 lbs.
• 6° Power Trak for easier steering
• LED Light Bar
• Fender Bra Kit : Marine Grade black vinyl withCSC embroidered logo
• Chrome side cover panels
• Chrome tail light trim
• Parking brake
• Trailer hitc

 5 Year/UNLIMITED MILE Warranty

Ride with confidence!

  Let  Pair-a-Dice Trikes take care of pick up and delivery of your motorsport  machine and save time, trouble and headaches. Click the pic to start the fun.

 Every HT1800 Roadsmith Trike is built with the attention and craftsmanship needed to be a true extension of the Honda™ motorcycle itself. Take a closer look and you will see what we mean.

Have Fun, Worry-Free

•   Wheelbase - 78"
• Overall length - 116"
• Overall width - 56" at the body 58" wide with Wing Guards
• Weight - 1150 lbs wet
• Storage - 27" wide x 14" high opening x 15" deep - 6 cu ft.
• Suspension - Lateral trailing arm Independent Rear Suspension
• Suspension adjustment - Manually adjustable Progressive coil-over shocks
• Stabilizer bar - 5/8" bar to control body roll
• Tires, rear - 205/65-16 radial
• Rims, rear - 16x7 alloy 5x4 1/2 35mm offset
• Final drive ratio - 2.93:1
• Brakes, rear - Dual 35mm piston calipers
• Shocks - Adjustable coil over
• Body material - Polyester resin fiberglass
• Drive system-  2" diameter shaft w/ sealed u-joints

•  Independent rear suspension
• True track stabilizer bar
• Longer wheelbase
• Shaft driven differential
• Disc brakes
• Heavy Duty driveshaft
• Alloy wheels
• Storage Compartment
• Factory styled body
• Trailer hitch
• 5-gallon auxillary fuel tank
• Steering kit
• 3 year or 1,000,000 mile warrant
